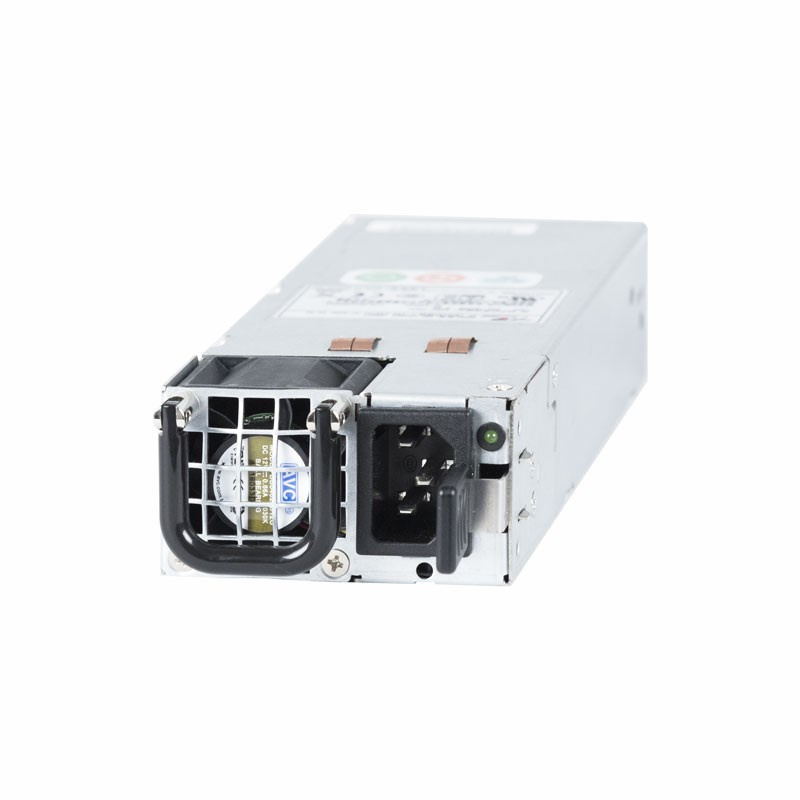

CHIEFTEC redundantní zdroj MRZ-5AF0K2V, 2x1600W, ATX-12V V.2.3, PS-2 type, PFC, 80+ Platinum
Popis
Parametry
Hlídací pes
Performance
| Model | MRZ 1600W |
| Article no. | MRZ-AF0K2V |
| EAN code | 0753263076700 |
| Weight (without/with package) | 5.2 kg / 5.7 kg |
| AC Input | 100 - 240V / 8-10.5A |
| Frequency | 47 - 63Hz |
| +5V | 25A |
| +3,3V | 25A |
| +5V & +3,3V combined | 180W |
| +12V 1 | 133A |
| +12V 2 | - |
| +12V 1 & +12V 2 combined | - |
| P.F. | >0,9 |
| -12V | 0.5A |
| +5VsB | 3.5A |
| Maximum Power | 1600W |
Connectors
| 20+4PIN ATX | 1 |
| 8 PIN EPS (4+4) | 1 |
| 8 PIN EPS | 1 |
| 8 PIN PCIe (6+2) | 8 |
| SATA | 8 |
| MOLEX | 6 |
| MOLEX/FLOPPY | 2 |
| TTL Signal | 1 |
| LED (Total Power) | 1 |
| BUZZER RESET/PUSH SW | 1 |
| PMBus SIGNAL | 1 |
Cable length
| 20+4PIN ATX | 550 |
| 8 PIN EPS (4+4) | 550 |
| 8 PIN EPS | 550 |
| 8 PIN PCIe (6+2) | 4x 550/200 |
| SATA | 4x 550/200 |
| MOLEX | 3x 550/200 |
| MOLEX/FLOPPY | 550/200 |
| TTL Signal | 1070 |
| LED (Total Power) | 1070 |
| BUZZER RESET/PUSH SW | 770/200 |
| PMBus SIGNAL | 500 |
Features
| Specification | ATX 12V 2.3 |
| Form factor | PS II mini redundant |
| Efficiency | 80 PLUS® Platinum |
| Dimension (DxWxH) | 222mm x 150mm x 86mm |
| PFC | Active PFC |
| Fan | 2x 40mm fan (1 fan per module) |
| Security |
|
| Warranty | 24 Months |
Formát zdroje:
ATX
Konektory:
FDD
Konektory:
Molex
Konektory:
SATA 15-pin
Konektory:
PCIe 8-pin
Konektory pro základní desku:
ATX 24-pin
Konektory pro základní desku:
EPS 8-pin
Výkon zdroje (W):
1600
Aktuální cena produktu je28920Kč
s dph
