Cooler Master zdroj V850 SFX Gold, 850W
Popis
Parametry
Hlídací pes

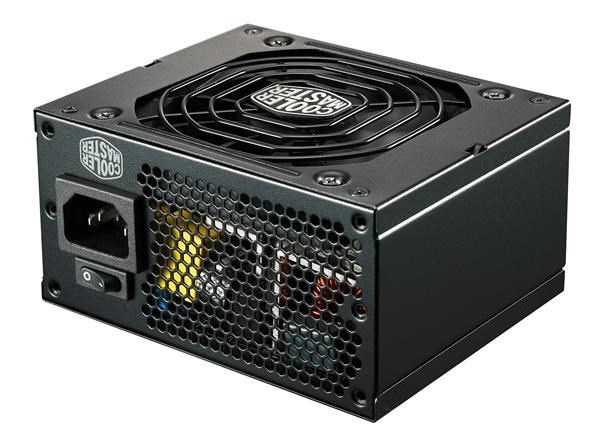

V850 SFX Gold
The V SFX Gold delivers the high quality experience you’ve come to expect from the V series in SFX form factor. Enjoy the same great features with 80 Plus Gold efficiency, full-modular cabling, an FDB fan, 16AWG PCIe high efficiency cables, and a 10 year warranty. But now you can have it in a mini-ITX case. With the V SFX Gold, the V series is now viable for cases ranging from mini-ITX all the way up through E-ATX systems. And with the included bracket this unit is compatible with all of them.
- SFX Form Factor : This unit is compatible with all SFX cases and suitable for mini-ITX system builds.
- SFX-to-ATX Bracket : The included bracket allows users to install this unit securely in traditional ATX cases.
- 80 PLUS Gold Certified : This certification guarantees a typical efficiency of 90% under normal operating conditions.
- Quiet FDB Fan : The 92mm FDB fan delivers effective, quiet, and efficient cooling.
- Full-Modular Cabling : Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.
- 10 Year Warranty : This unit comes with a standard limited manufacturing warranty of 10 years from the date of purchase.
TECHNICAL SPECIFICATIONS
ATX Version | V850 SFX Gold |
ATX Version | SFX 12V Ver. 3.42 |
PFC | Active PFC |
Input Voltage | 90-264 V |
Input Current | 12-6A |
Input frequency | 47-63 Hz |
Dimensions (L x W x H) | 100 x 125 x 63.5 mm |
Fan Size | 92 mm |
Fan Bearing | FDB |
Efficiency | 90% Typical Load |
80 Plus Rating | 80 PLUS Gold |
ETA Rating | A |
IAMBDA Rating | A |
ERP 2014 Lot 3 | Yes |
Operating Temperature | 0-50°C |
Power Good Signal | 100-500 ms |
Hold Up Time | 16ms |
MTBF | >100,000 Hours |
Protections | OVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection |
Regulatory | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB |
ATX 24-pin Connectors | 1 (300 mm) |
EPS 4+4 pin Connectors | 1 (450 mm) |
EPS 8-pin Connector | 1 (450 mm) |
SATA Connectors | 8 (400 + 120 mm) |
Peripheral 4-pin Connectors | 4 (100 + 115 + 115 + 115 mm) |
PCI-E 6+2 pin Connectors | 4 (100 + 115 + 115 + 115 mm) |
Series | V Gold Series, V SFX Gold Series |
.
Formát zdroje:
SFX
Formát zdroje:
ATX
Konektory:
SATA 15-pin
Konektory:
PCIe 8-pin
Konektory:
8pin CPU 2x
Konektory:
PCIe 6-pin
Konektory pro základní desku:
ATX 24-pin
Efektivita zdroje:
80 Plus Gold
Modulární kabeláž:
Ano
Výkon zdroje (W):
850
Aktuální cena produktu je4169Kč
s dph
