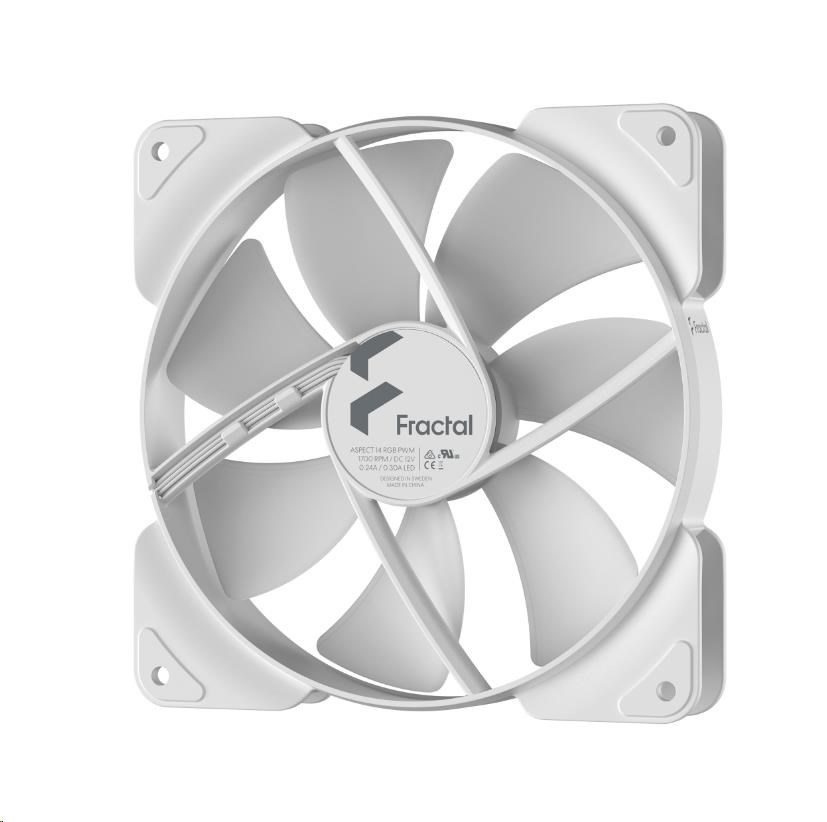

FRACTAL DESIGN ventilátor Aspect 14 RGB PWM White Frame, 140mm
Popis
Parametry
Hlídací pes
Aspect 14 RGB PWM
Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.
- Less turbulence thanks to aerodynamic stator struts
- 6 individually addressable hub-mounted RGB LEDs
- PWM control with a wide RPM speed range
TECHNICAL SPECIFICATIONS
| Size | 140 x 140 x 25 mm |
| Screw hole pattern | 125 x 125 mm |
| LED type | Addressable RGB |
| Fan Connector | 4-pin |
| Bearing | Rifle |
| Number of blades | 7 |
| Rotation speed | 500-1700 RPM |
| Max airflow (CFM) | 20 – 78 CFM |
| Max airflow (m3/h) | 34 – 132.5 m3/h |
| Max pressure | 0.30 – 2.05 mm H2O |
| Fan typical input power | 2.16 W |
| Fan max input current | 0.24 A |
| Fan input voltage | 12 V |
| Minimum startup voltage | 7 V |
| LED rated voltage | 5 V |
| LED rated current | 0.3 A |
| LED Rated input power | 1.5 W |
| MTTF | 90.000 h |
| Unit weight | 155 g |
| Cable length | 500 mm |
| Cable type | Black/White ribbon (allows chaining) |
.
Využití chladiče:
Do PC skříně
Typ chladiče:
Aktivní
Barva podsvícení:
RGB
Napájecí konektor:
4pin
Velikost ventilátoru:
140x140
Aktuální cena produktu je470Kč
s dph
