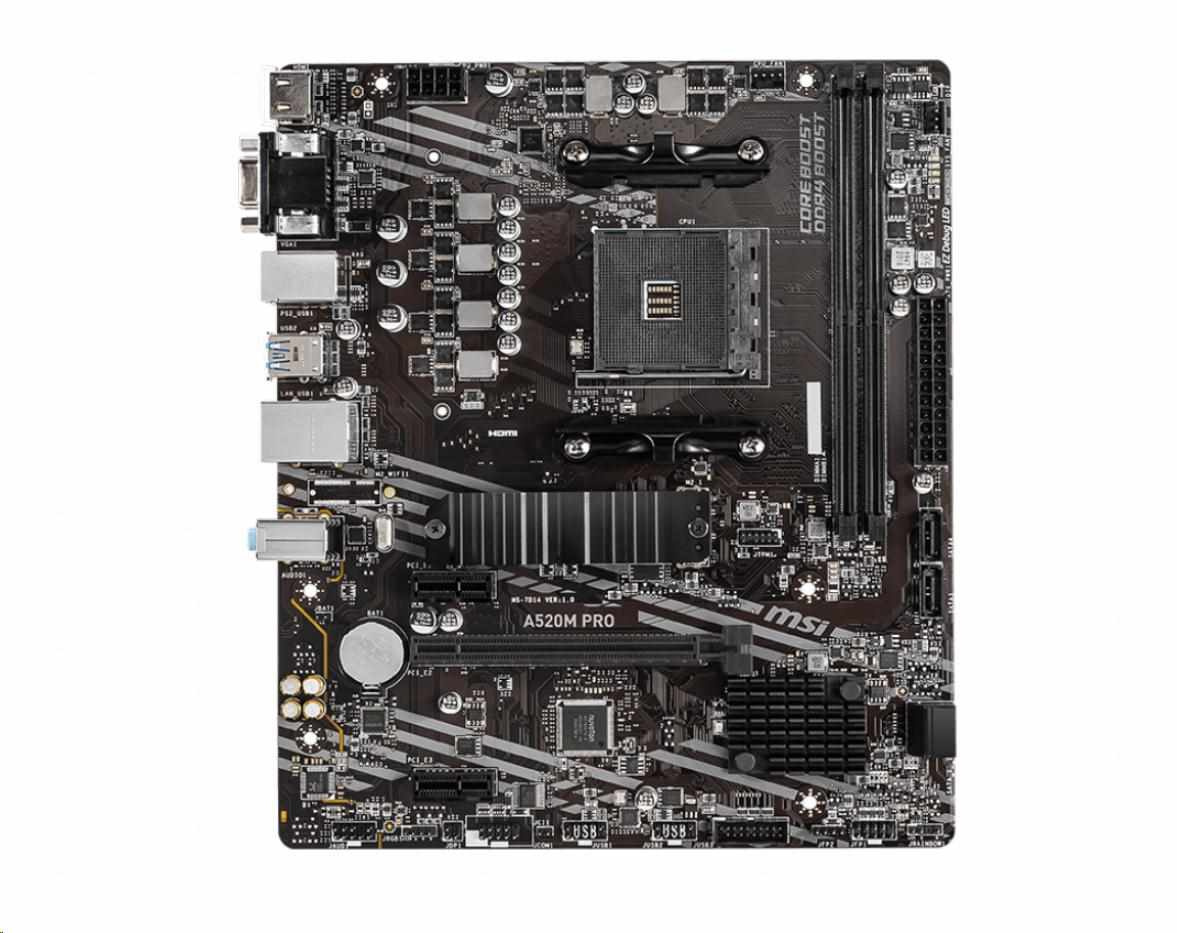

    MSI MB Sc AM4 A520M PRO, AMD A520, VGA, 2xDDR4, mATX

    Přidat do oblíbenýchMSI MB Sc AM4 A520M PRO, AMD A520, VGA, 2xDDR4, mATX
    Formát základní desky:micro ATX; Chipset:Intel B360, AMD A520; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:2; M.2 slot:1; SATA 3:4; Podpora RAID:1, 10; PCI Express x16:1; PCI Express x1:2; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VGA:1; DVI:0; USB 2:6; USB 3:6; TPM; 3.5mm Jack.

    Kód produktu2647647
    Part numberA520M PRO
    EAN produktu4719072755492

    Záruka:36 Měsíc(ů)
    Výrobce:MSI
    Skladová dostupnost:Na dotaz
    Běžná cena
    1789 Kč
    Vaše cena bez DPH
    1136.36 Kč
    Vaše cena včetně DPH
    1375 Kč
    Počet
    ks
    Dotaz na prodejce >






    Přidat produkt k porovnání >Přidat produkt k oblíbeným >
    Popis
    Parametry
    Hlídací pes

    A520M PRO

    • Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
    • Supports DDR4 Memory, up to 4600(OC) MHz
    • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
    • M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
    • Core Boost: With premium layout and digital power design to support more cores and provide better performance
    • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
    • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
    • Audio Boost: Reward your ears with studio grade sound quality
    • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface

    TECHNICAL SPECIFICATIONS

    Socket AM4
    CPU Support Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
    Chipset AMD® A520 Chipset
    Memory
    • 2x DDR4 memory slots, support up to 64GB
      - Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
      - Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
      - 1DPC 1R max speed 4600 MHz
      - 1DPC 2R max speed 3866 MHz
    • Dual channel memory architecture
    • Supports non-ECC UDIMM memory
    • Supports ECC UDIMM memory (non-ECC mode)
    • Supports un-buffered memory
    Expansion Slot
    • 1x PCIe x16 slot (PCI_E2)
    • 2x PCIe 3.0 x1 slots
    Onboard Graphics
    Storage

    AMD A520 Chipset

    • 4x SATA 6Gb/s ports
    • 1x M.2 slot (Key M) (from AMD Processor)
      - M2_1 slot (from AMD Processor)
      - Supports PCIe 3.0 x4 1
      - Supports SATA 6Gb/s
      - Supports 2242/ 2260/ 2280 storage devices
    RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    USB

    AMD A520 Chipset

    • 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
    • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

    AMD Processor

    • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
    AUDIO

    Realtek® ALC892 Codec

    • 7.1-Channel High Definition Audio
    LAN
    • 1x Realtek® RTL8111H LAN controller
    Internal Connectors
    • 1x 24-pin ATX main power connector
    • 1x 8-pin ATX 12V power connector
    • 4x SATA 6Gb/s connectors
    • 1x Serial port connector
    • 1x M.2 slot (M-Key)
    • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1x 4-pin CPU fan connector
    • 1x 4-pin system fan connector
    • 1x Front panel audio connector
    • 2x System panel connectors
    • 1x Chassis Intrusion connector
    • 1x 4-pin RGB LED connector
    • 1x 3-pin RAINBOW LED connector
    • 1x TPM module connector
    • 1x Clear CMOS jumper
    Back Panel Ports
    • VGA
    • Keyboard / Mouse
    • LAN port
    • HDMI
    • DisplayPort
    • USB 2.0 Ports
    • USB 3.2 Gen 1 5Gbps Type-A
    • USB 3.2 Gen 1 5Gbps Type-A
    • Audio Connectors
    Dimensions
    • M-ATX Form Factor
    • 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
    Mounting
    • 6 mounting holes
    Box Content
    • A520M Pro
    • Quick Installation Guide
    • MSI Case Badge
    • 2x SATA Cables
    • Product Registration Card
    • I/O Shielding
    • Driver DVD
    Form Factor m-ATX
    Operating System Support for Windows® 10 64-bit

    .
    Technologie paměti RAM: DDR4
    Socket (patice): Socket AM4
    Chipset: Intel B360
    Chipset: AMD A520
    PCI Express x16: 1
    Podpora RAID: 1
    Podpora RAID: 10
    LPT port: Ne
    Formát základní desky: micro ATX
    3.5mm Jack: Ano
    Bezdrátové připojení: bez
    Pro procesory: AMD
    Počet paměťových slotů: 2
    DisplayPort: 1
    TPM: Ano
    USB 2: 6
    USB 3: 6
    M.2 slot: 1
    SATA 3: 4
    VGA: 1
    DVI: 0
    HDMI: 1
    Led Header: Ne
    PCI Express x1: 2
    LAN: 1Gbit/s
    Aktuální cena produktu je1375Kč  s dph
